Oil platform

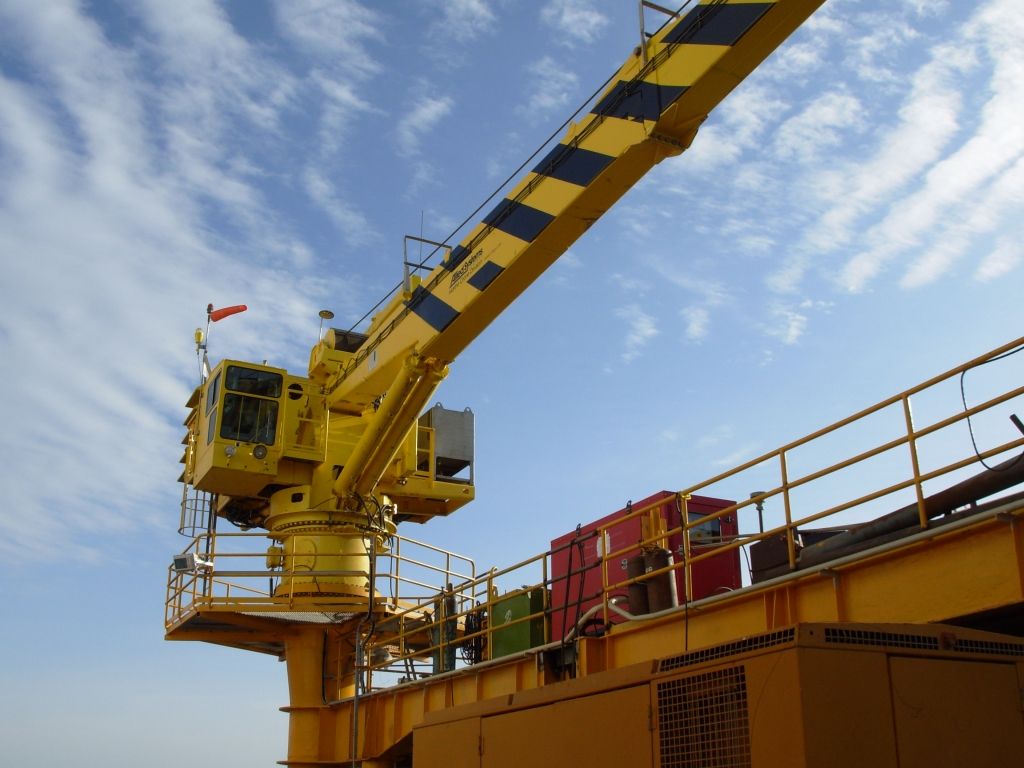

Genset on the oil platform

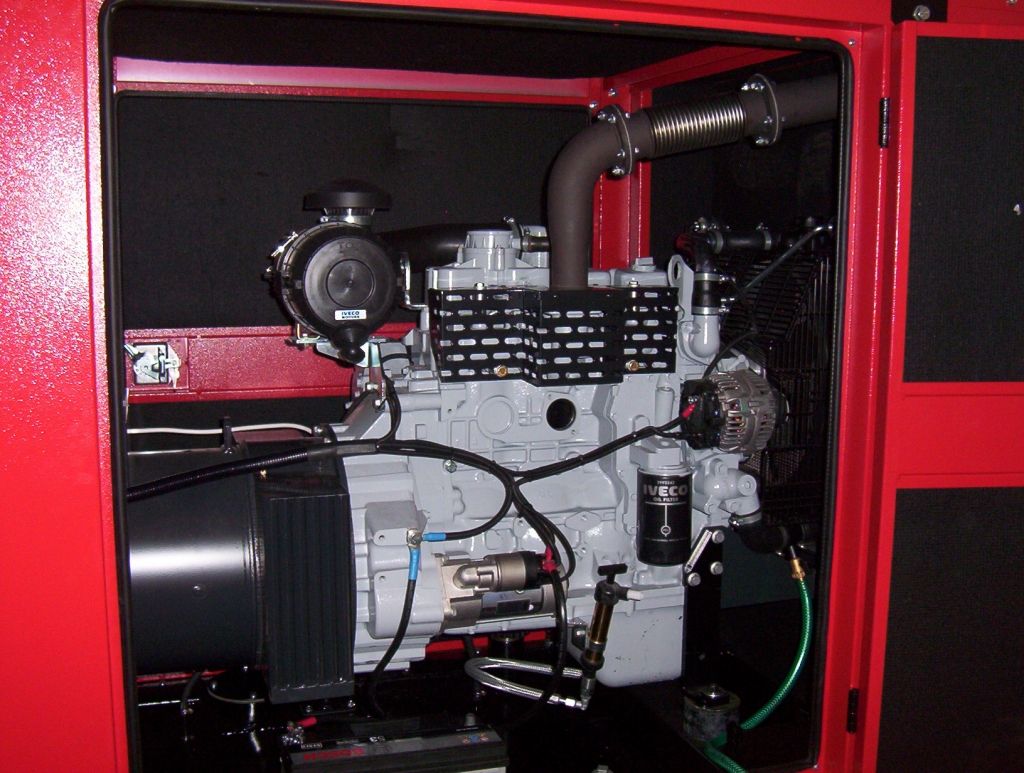

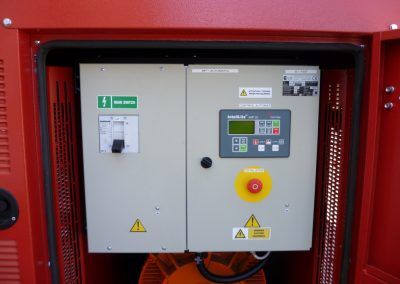

Genset in canopy MP 50 I with power of 50 kVA. Genset is intended for backuping of the main systems on the oil platform in Caspian sea.

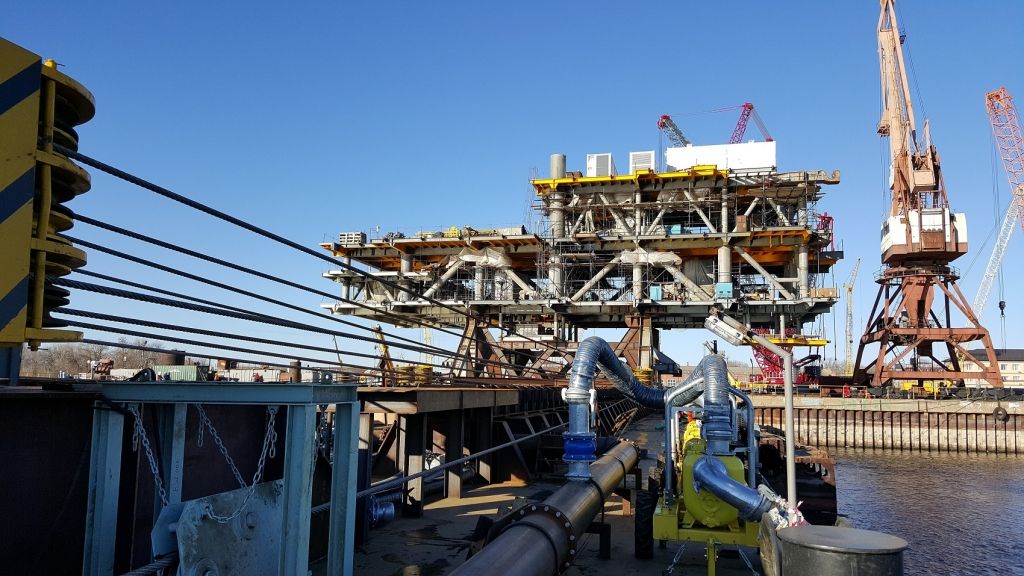

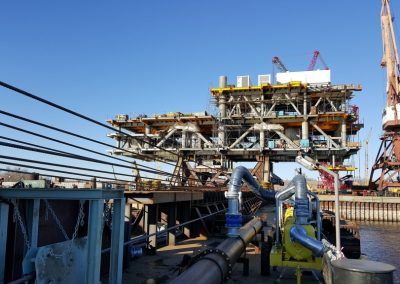

Oil platform in Caspian sea

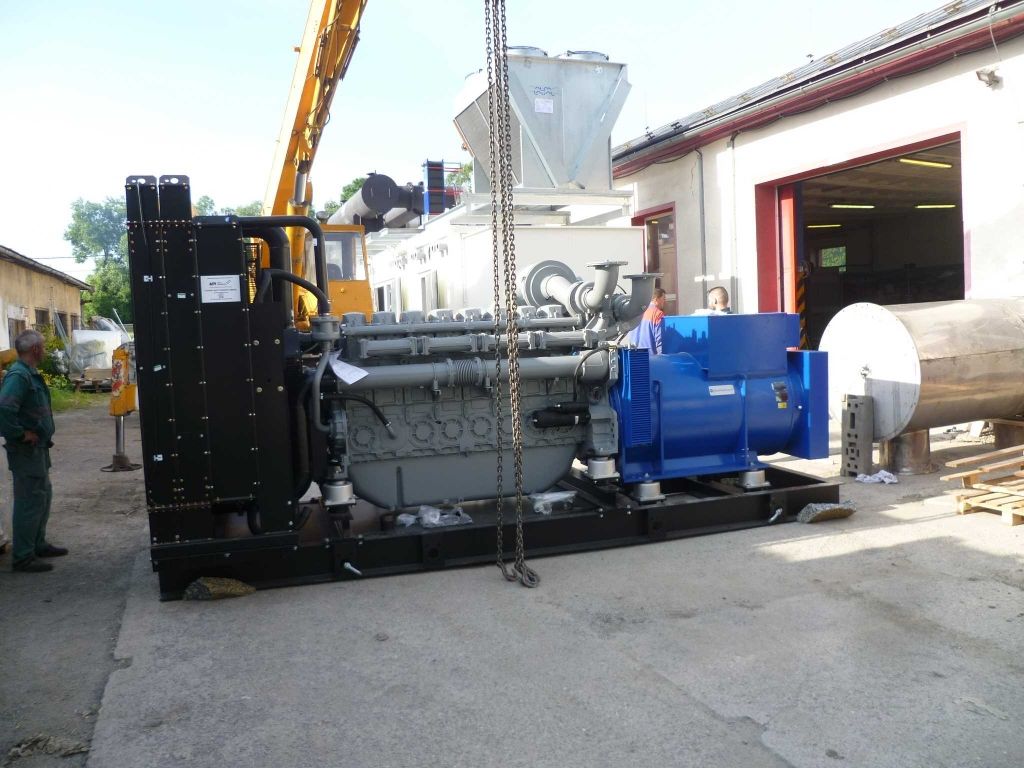

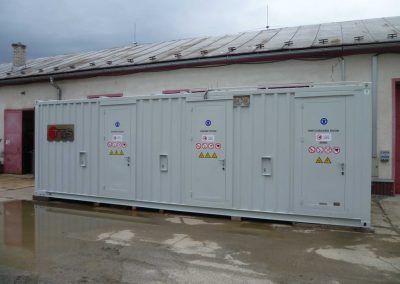

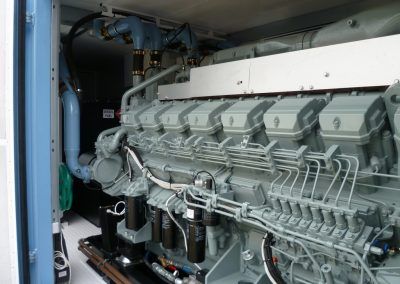

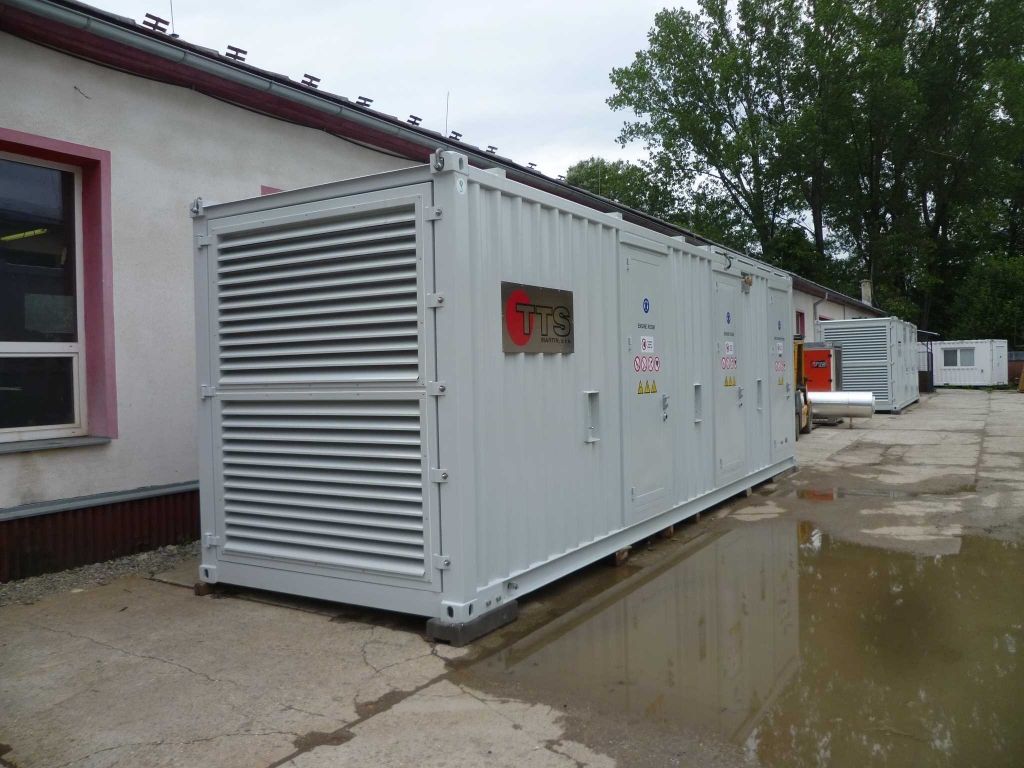

2 pcs of container gensets MP 900 P are prime energy source on the platform
Martin Power gensets powered by Perkíns are specially made according to norms for oil platforms and internal directives of customer. They are designed to resist rough off-shore environmental conditions and serve as primary electricity source for oil platform in Caspian sea in Turkmenistan.

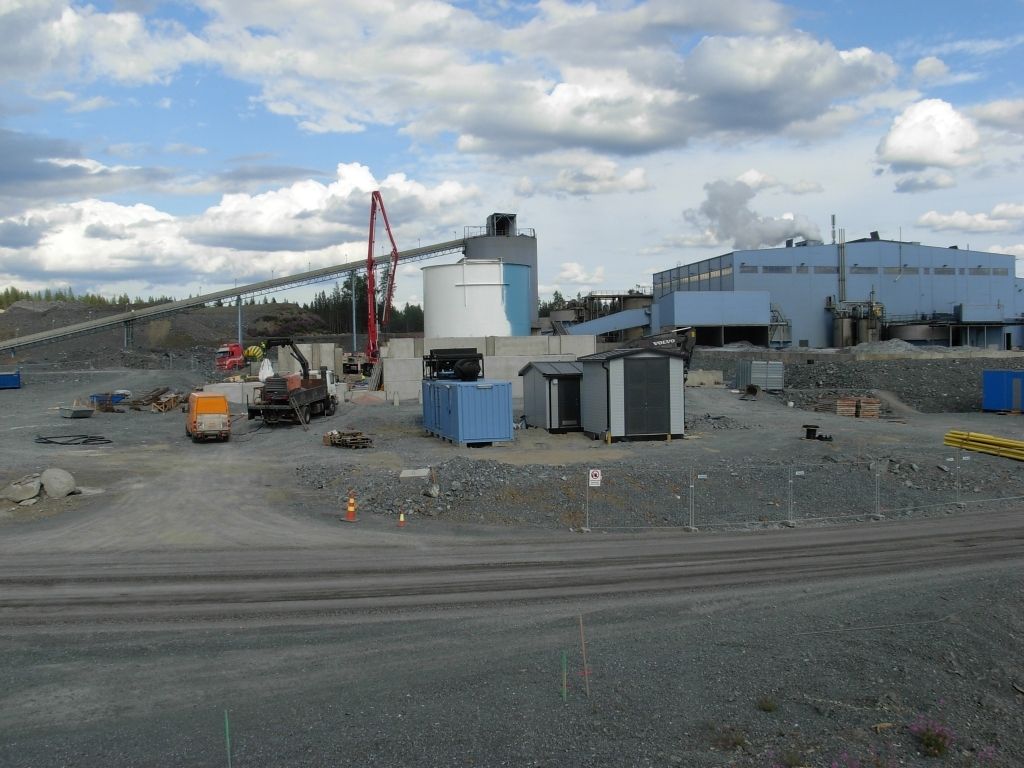

Kittilä gold mine behind the polar circle, Finland

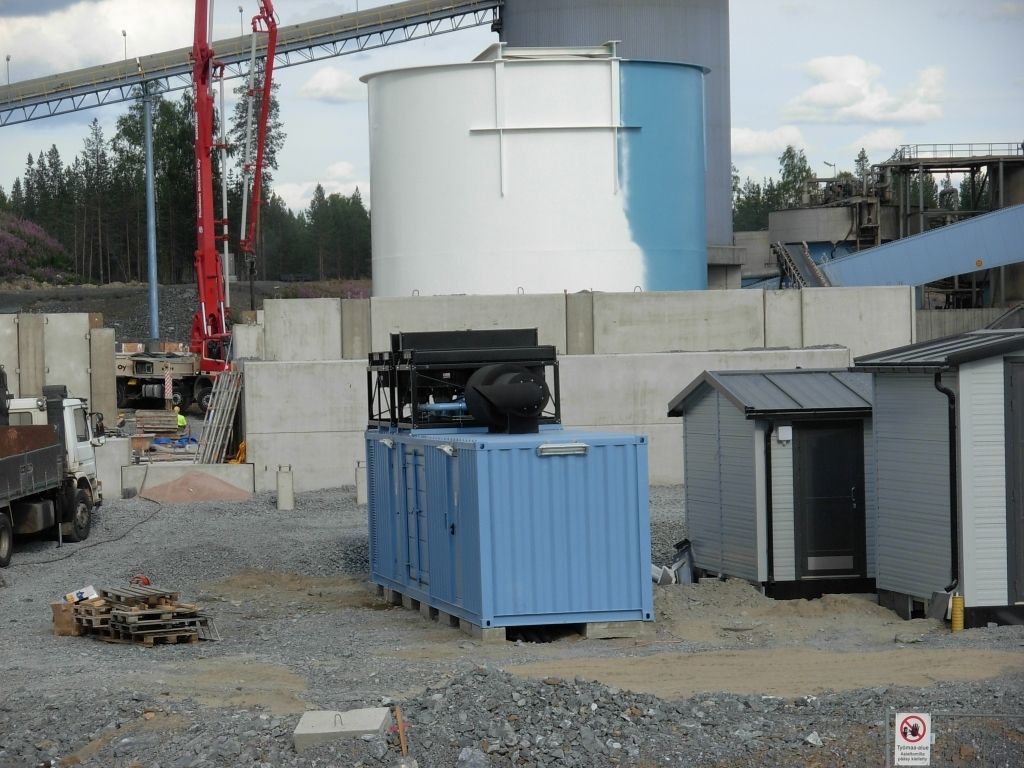

Backup genset for the basic systems of Europe’s largest gold mine

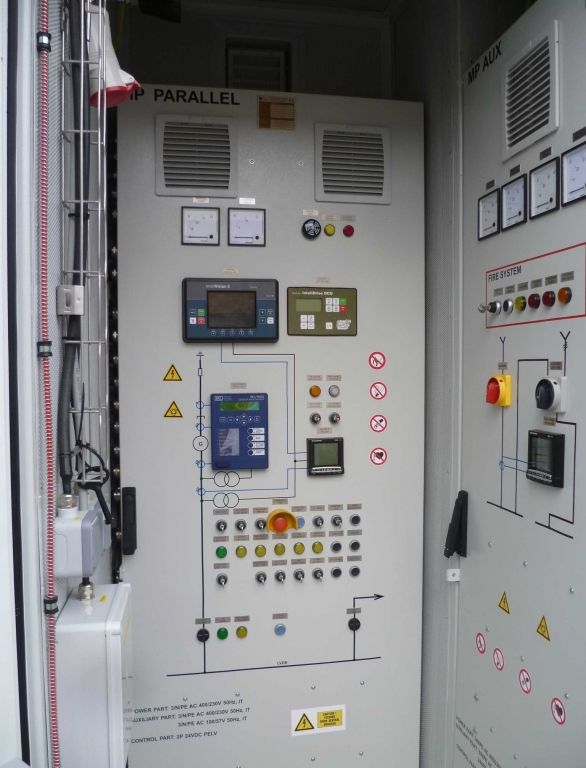

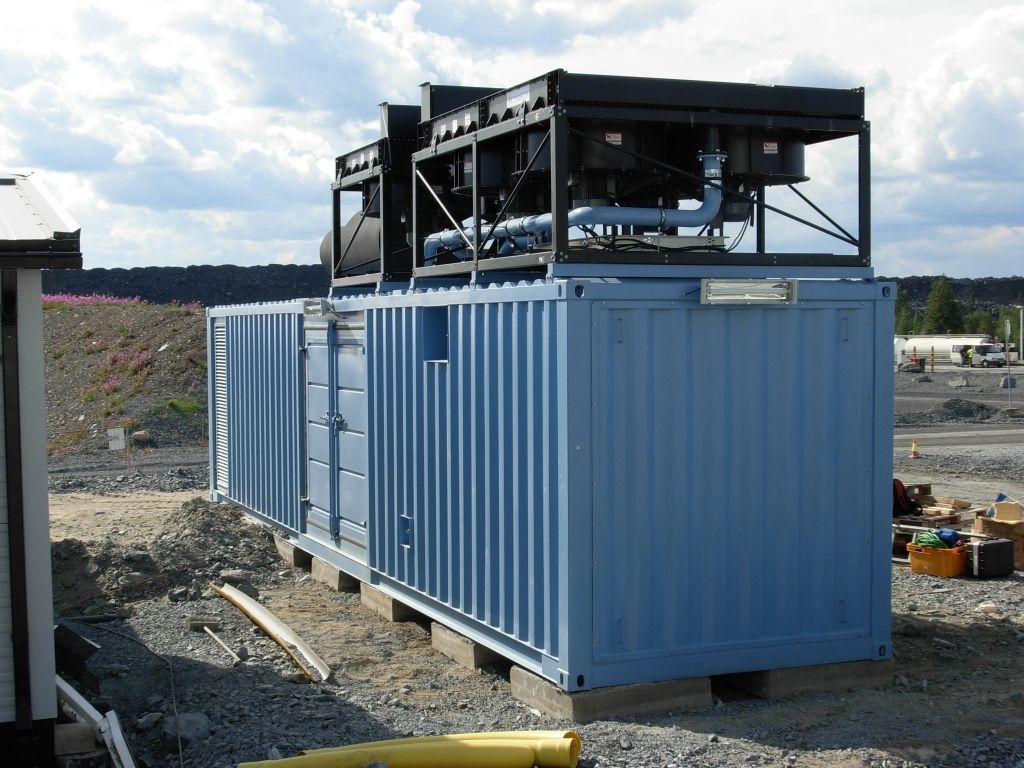

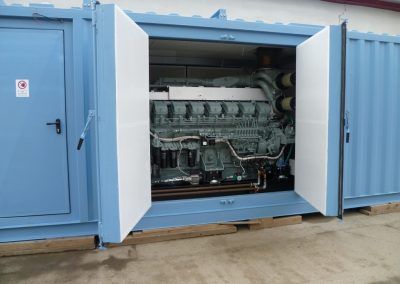

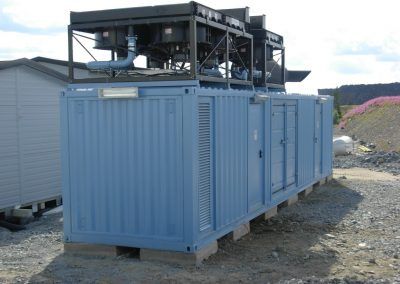

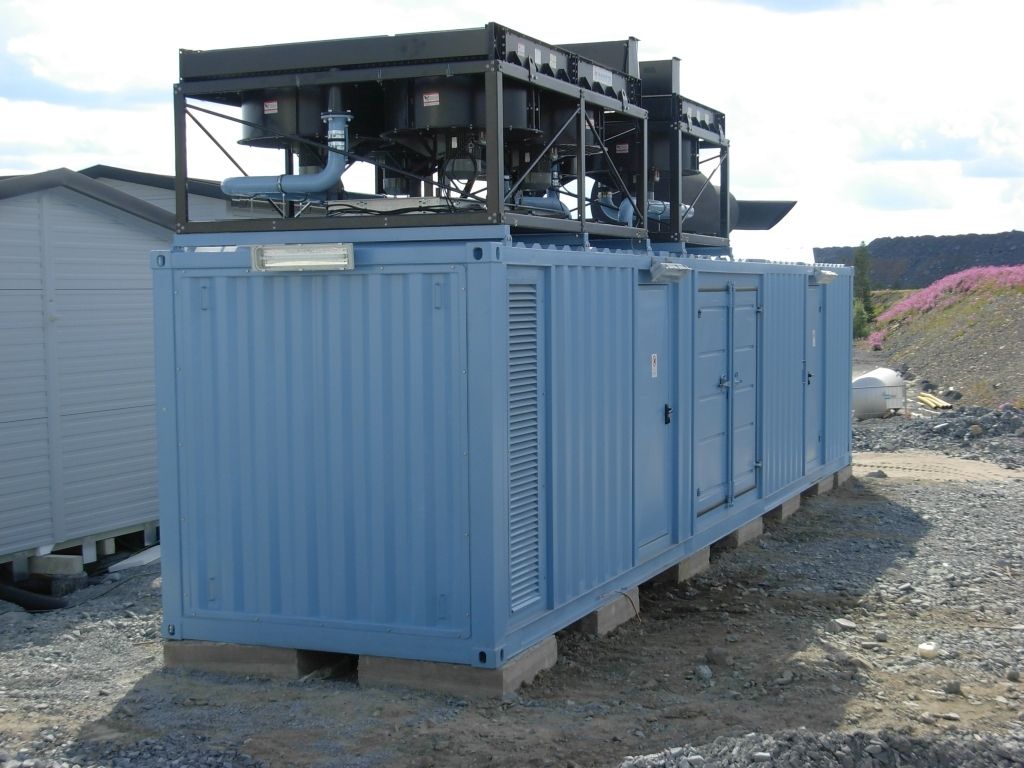

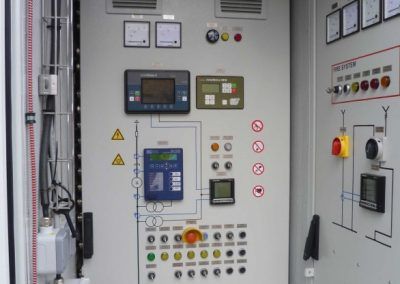

Genset MP 2000 M in container with power 2000 kVA for backuping basic systems in gold mine. Container is equiped with external cooling system on the roof and heating of genset space. Parallel cooperation with mains is ensured by MP Parallel control panel. In container is fixed double wall fuel tank with volume 4200 L and possibility of automatic fuel refilling. Genset is preheated and prelubricated for quick start in case of blackout. Whole system is designed for temperature up to -40 °C.
Solar hybrid systems, Turkmenistan
Supply of two systems that combine solar power and power from genset

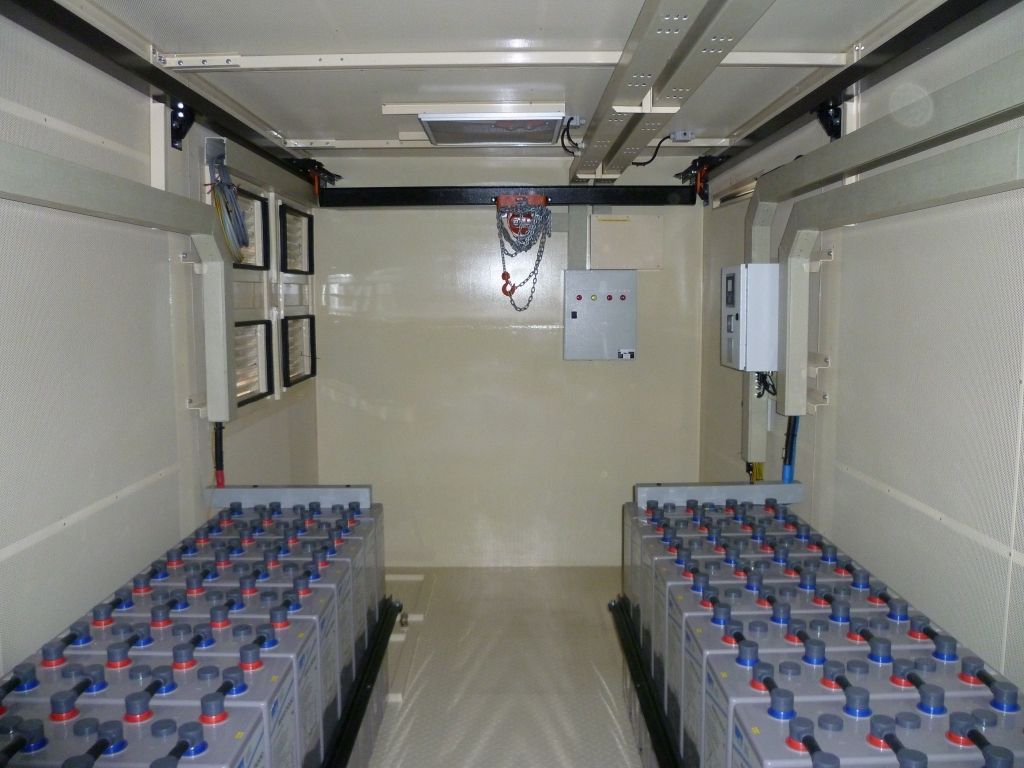

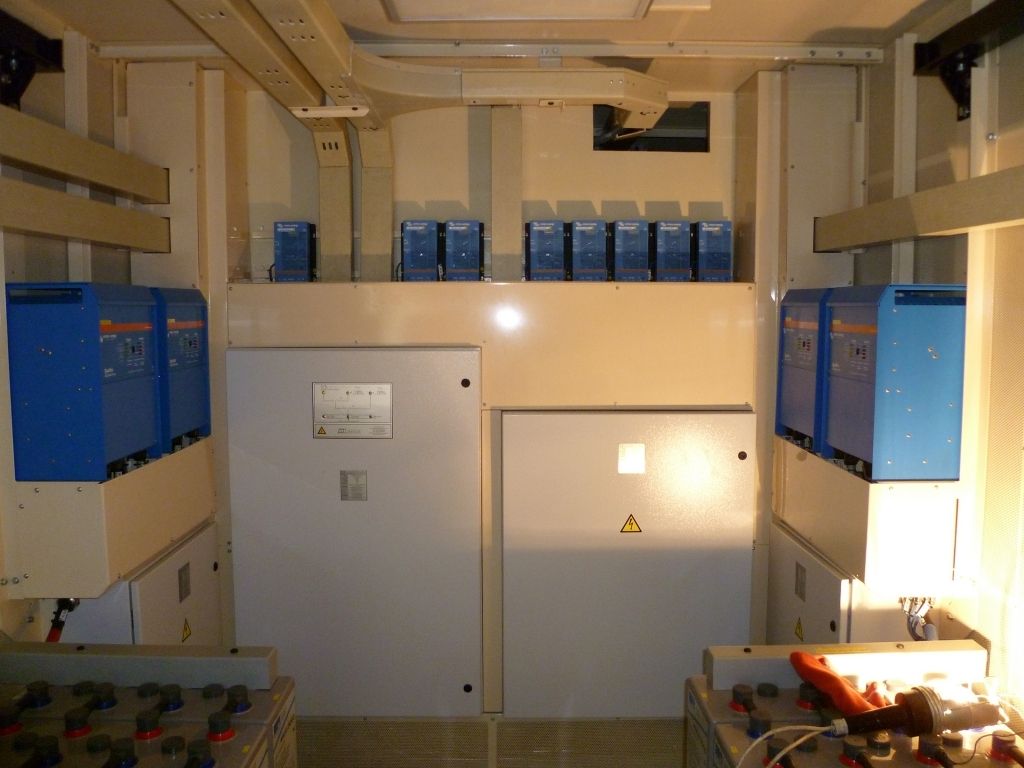

Hybrid system combines uninterruptible power supply system of external electric load AC230V/50Hz. Hybrid system is combination of photovoltaic panels, batteries, diesel generator power and provides the power to the site by complementing the solar energy, batteries and diesel generator. That eliminates the risk of the solar power solution caused by rainy days or the fluctuation of the sunshine duration in different periods. These systems can store energy for photovoltaic input as an addition, in order to minimize use of the generating set. Solar input can also extend battery discharge and thereby reduce the number of cycles. With an equivalent system and load, the battery unit will therefore have a longer service life and genset consumption will be lower.
